"BAJA SPEC" Roll Cage Kit: RZR Turbo R 4 / PRO S 4 (2022+)
"BAJA SPEC" Roll Cage Kit: RZR Turbo R 4 / PRO S 4 (2022+)

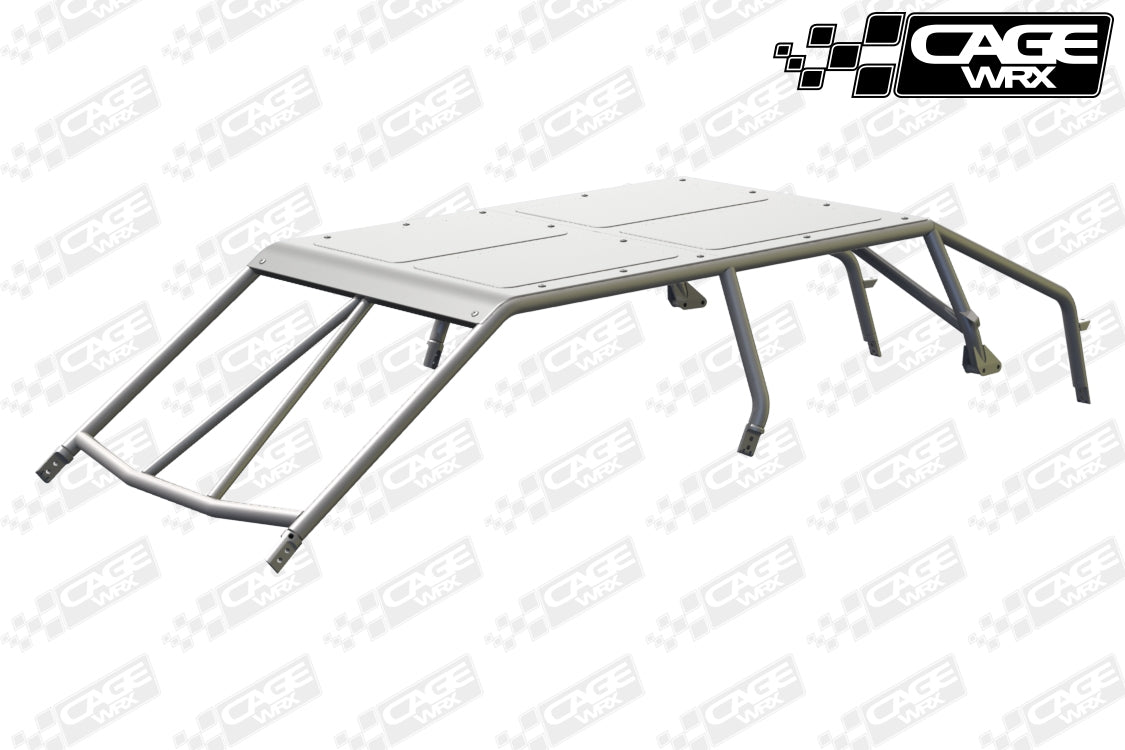

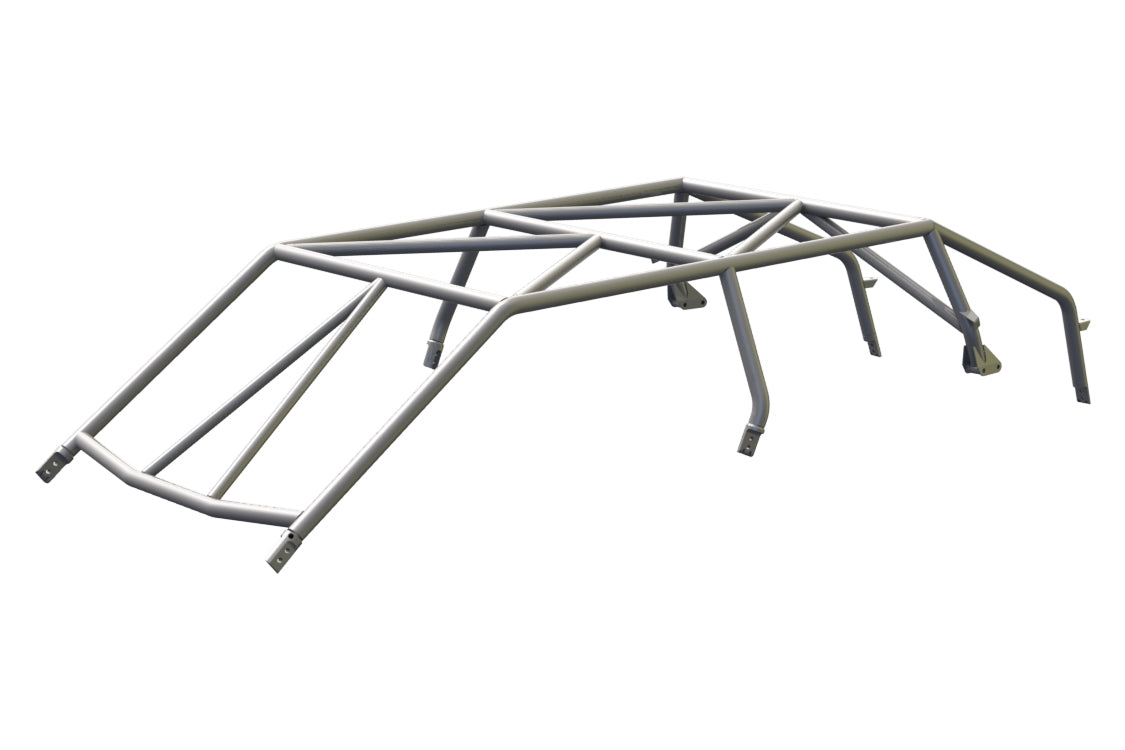

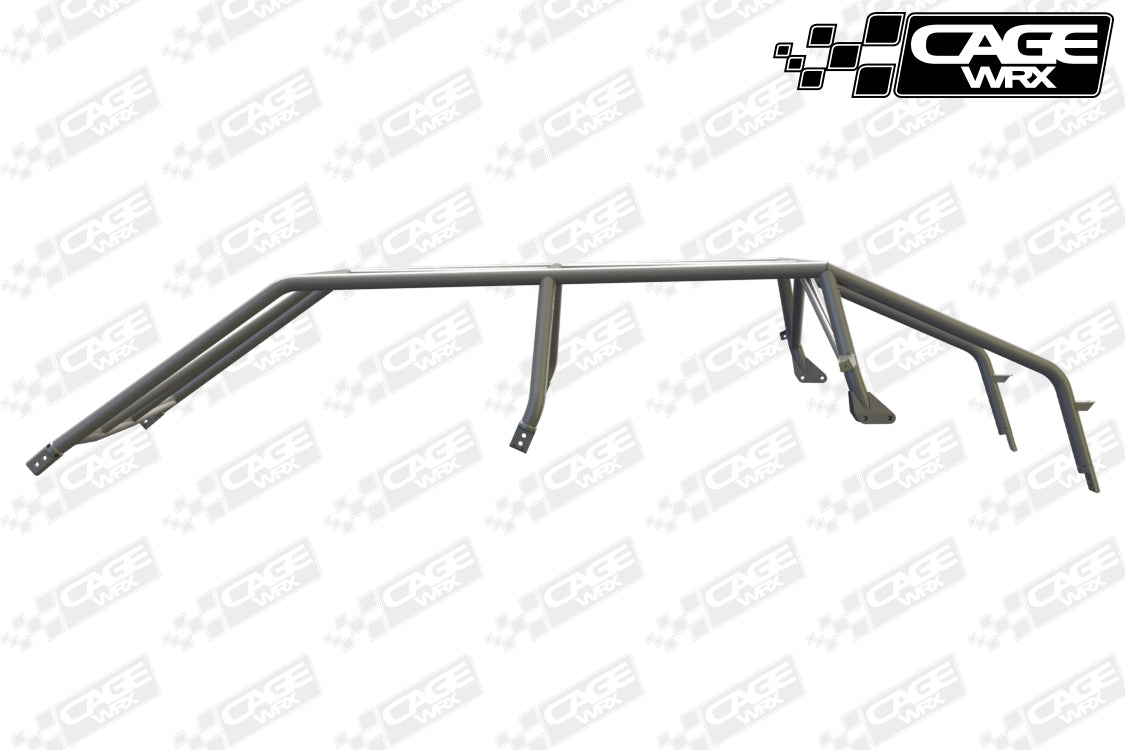

Ready-to-weld "Baja Spec" Roll Cage Kit for Polaris RZR Turbo R 4 / PRO S 4 (2022+).

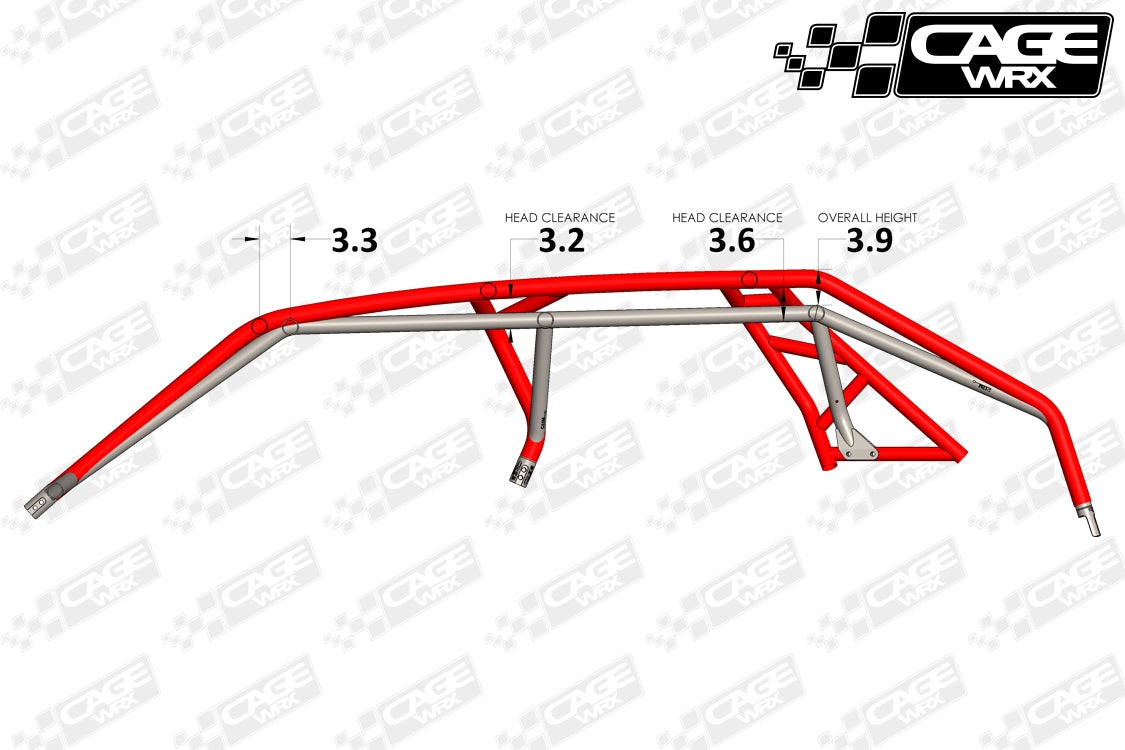

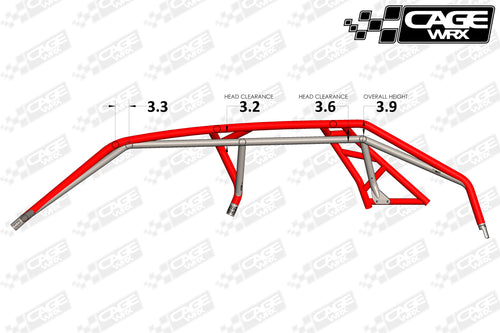

High quality DOM steel used throughout. Main tubes (roof tube and c-pillar) are 1.75" diameter .120" wall thickness, rear intrusion tubes are 1.5" diameter and .095" wall thickness, front intrusion tubes are 1.25" diameter and .095" wall thickness, all remaining tubes are 1.75" diameter and .095" wall thickness. Our Baja Spec roll cages use all stock mounting locations. Trophy Truck inspired design provides exceptional safety for driver and co-rider. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.
Click HERE to download a PDF file of the cage
What's Included?
- 20 Laser Notched Tubes with tab and slot design for easy positioning of tubes
- 6 Billet Tube Ends (chassis clamps)
- 4 Mounting plates and spacers for C-Pillar
SKU:4STRFT-DIY
