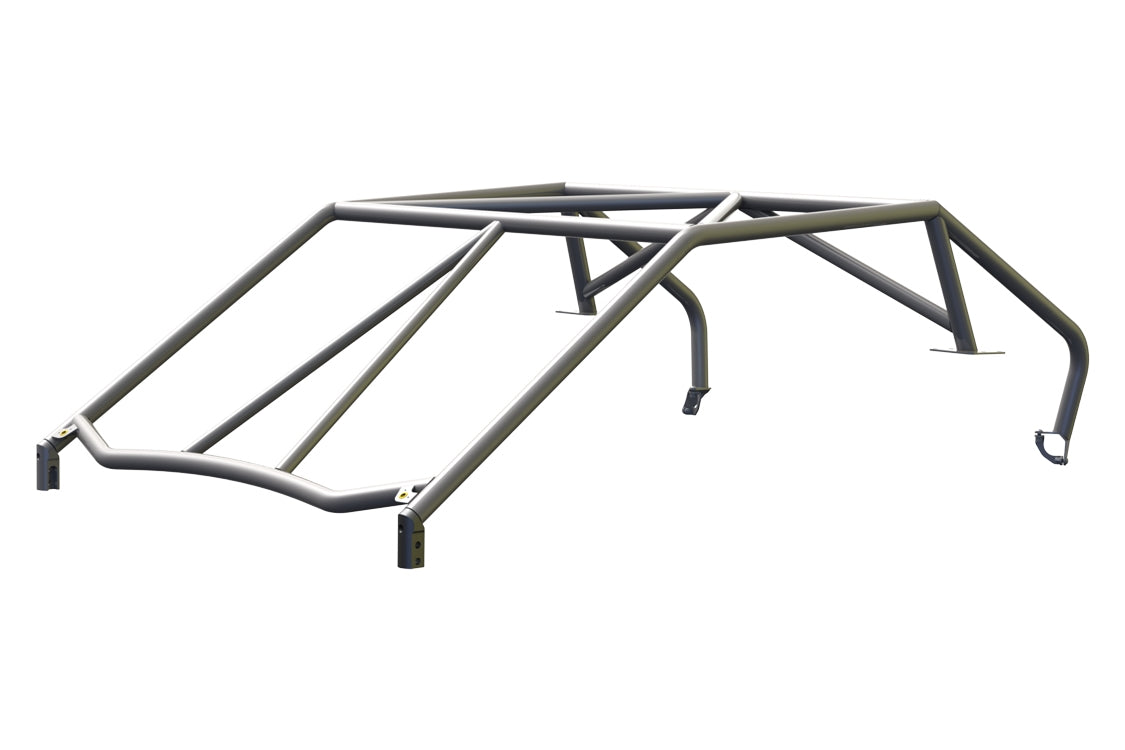

Ready-to-weld "Baja Spec" Roll Cage Kit for Can-Am Maverick R (2024+).

High quality DOM steel used throughout. Main tubes (A-Pillar and B-Pillar) are 1.75" diameter .120" wall thickness, rear intrusion tubes are 1.5" diameter .095" wall thickness, front intrusion tubes are 1.25" diameter .095" wall thickness, all remaining tubes are 1.75" diameter .095" wall thickness. Our "Baja Spec" roll cages use all stock mounting locations and we also tie the C-Pillar into the chassis. Trophy Truck inspired design provides exceptional safety for driver and co-rider. This is truly the best roll cage kit on the market. All tubes are mandrel bent and laser cut for exact fit. No grinding or other work required. Kit can be assembled and welded on chassis without the need for a separate fixture.

Click HERE to download a PDF file of the cage


What's Included?

  • (16) Laser Notched Tubes with tab and slot design for easy positioning of tubes
  • (2) Billet Tube Ends (chassis clamps)
  • (2) B-Pillar Plates
  • (2) C-Pillar Brackets
  • (4) 3/8"-16 Button Head Cap Screws
  • (4) 3/8"-16 Nyloc Nuts

CAGEWRX

SKU:2SMAVRFT-DIY

Regular price $899.99 USD
Regular price Sale price $899.99 USD
